ARROW SPRAY GUN MODELS

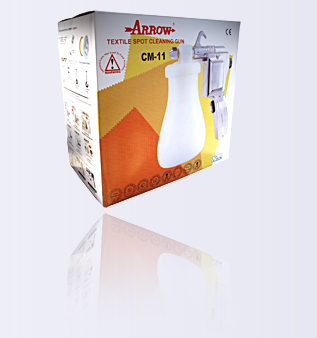

Arrow Spray Gun CM11
Product Over view
| Voltage/Frequency/ Watts/Current: | 110V / 220V AC 50 / 60 Hz 60W/600mA | Solvent Spill Proof System: | Yes |
| Insulation: | Class 1 Type | Jar Capacity: | 850ml |
| Extended Nozzle: | No | Output per Second (Ml): | 1.5ml |
| Spray Type: | Fixed Straight Line High Velocity Spray | Output Pressure: | 2400 psi |
| Pressure Adjustment: | Possible | Rated Usage / Rest Time: | 15 Sec On / 30 Sec Off |
| Earthed: | Yes | Pilferproof Shrink Packed: | Yes |
| Electric Plug / Wire Length: | 3 pin / 3 metres | Package includes: | 1 Unit Spray Gun with free spares |
| Fuse Protection: | Yes - Replaceable Glass Fuse 5x20mm ; 800mA | Identification Unique Serial Number: | Yes |
| Body: | Mirror Finished Impact Resistant Aluminium | Security Genuine Product Hologram: | Affixed |
| Inductor Coil: | Flame Retardant Glass Filled Nylon and High Temperature Resistant Copper Wire, Special Electrical Steel | Unit Weight - Dry / With Solvent: | 1.5 kgs / 2.1 kgs |
| Switch (Press to On / Release to Off): | Flame Retardant Plastic with Copper Contacts | Unit Weight - One Pc Packed: | 1.75 kgs |
| Internal Wiring: | Heat Resistant Teflon Coated Wire of 600V Rating | Pcs / Carton: | 10 |
| Cylinder Assembly: | Special bronze alloy with superfinished piston bore | Carton Weight: | 19.5 kgs |
| Piston: | Hardchromed & superfinished SS | Carton Size: | 75x27x52cms |
| Solvent: | As suitable to the application other than flammable solvents | Country of Origin: | India |
Arrow Spray Gun CM11 is one of the best metal body spray gun available, which is fitted with a straight spray nozzle. The body is made of high quality impact resistance aluminium raw material and is very strong and suitable for rough and rugged use.
The spray pressure can be adjusted as per your need. The Arrow CM11 spray gun weighs just about 1.75 Kgs. It is electrically operated and has a fuse protection system. A set of free spare parts are packed along with each set of spray gun. It is safe to use only the recommended chemicals in spray gun for long life of spray gun nozzle. Please go through the below specification table for detailed information
